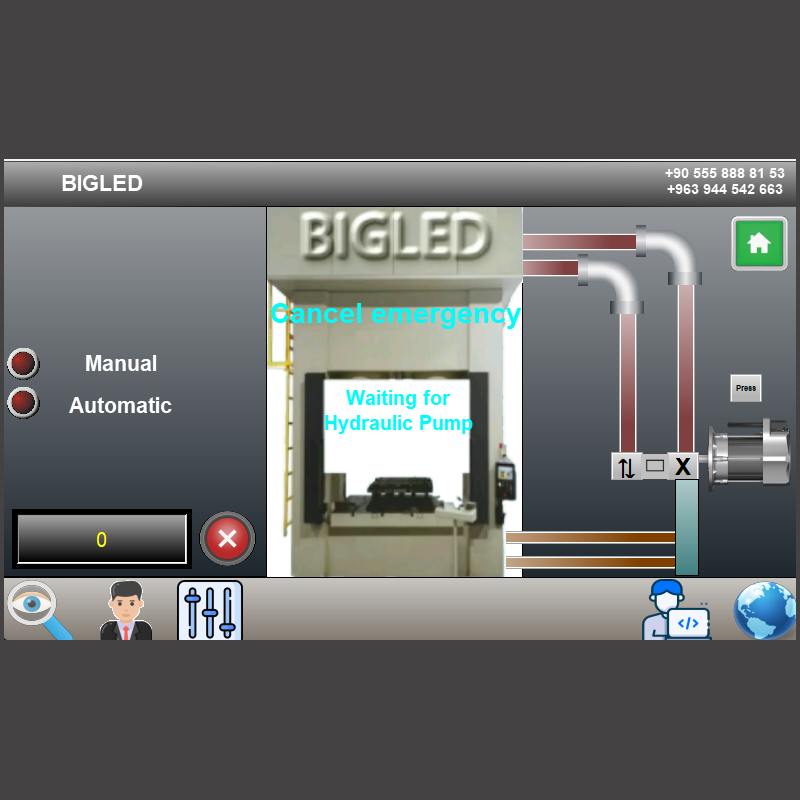

Complete Hydraulic Press Control Program – PLC + HMI

Complete Hydraulic Press Control Program

This project is a complete control program for multi-function hydraulic presses, designed to be adapted and customized for different types of hydraulic press machines and industrial applications.

The program includes a comprehensive set of functions and commands required for hydraulic press operation and control, while allowing the user to modify and customize the available functions according to the machine requirements.

Main Features:

• ✅ Complete hydraulic press control program.

• ✅ Suitable for multi-function hydraulic presses.

• ✅ Fully editable and customizable.

• ✅ Open Source.

• ✅ Multilingual support.

• ✅ Supports control of two hydraulic pumps.

• ✅ Includes explanations and descriptions of the program functions and programming lines to make modification and development easier.

• ✅ Complete PLC and HMI control system.

• ✅ Includes manual and automatic operation, emergency functions, motor and hydraulic pump control.

• ✅ Suitable as a starting point for developing different industrial hydraulic press control systems.

Software

The project was developed using:

PLC Programming: Delta ISPSoft
HMI Programming: Delta DIAScreen

The program is designed to allow engineers and programmers to understand, modify and develop the source code according to the hydraulic press configuration and the components used in the machine.
